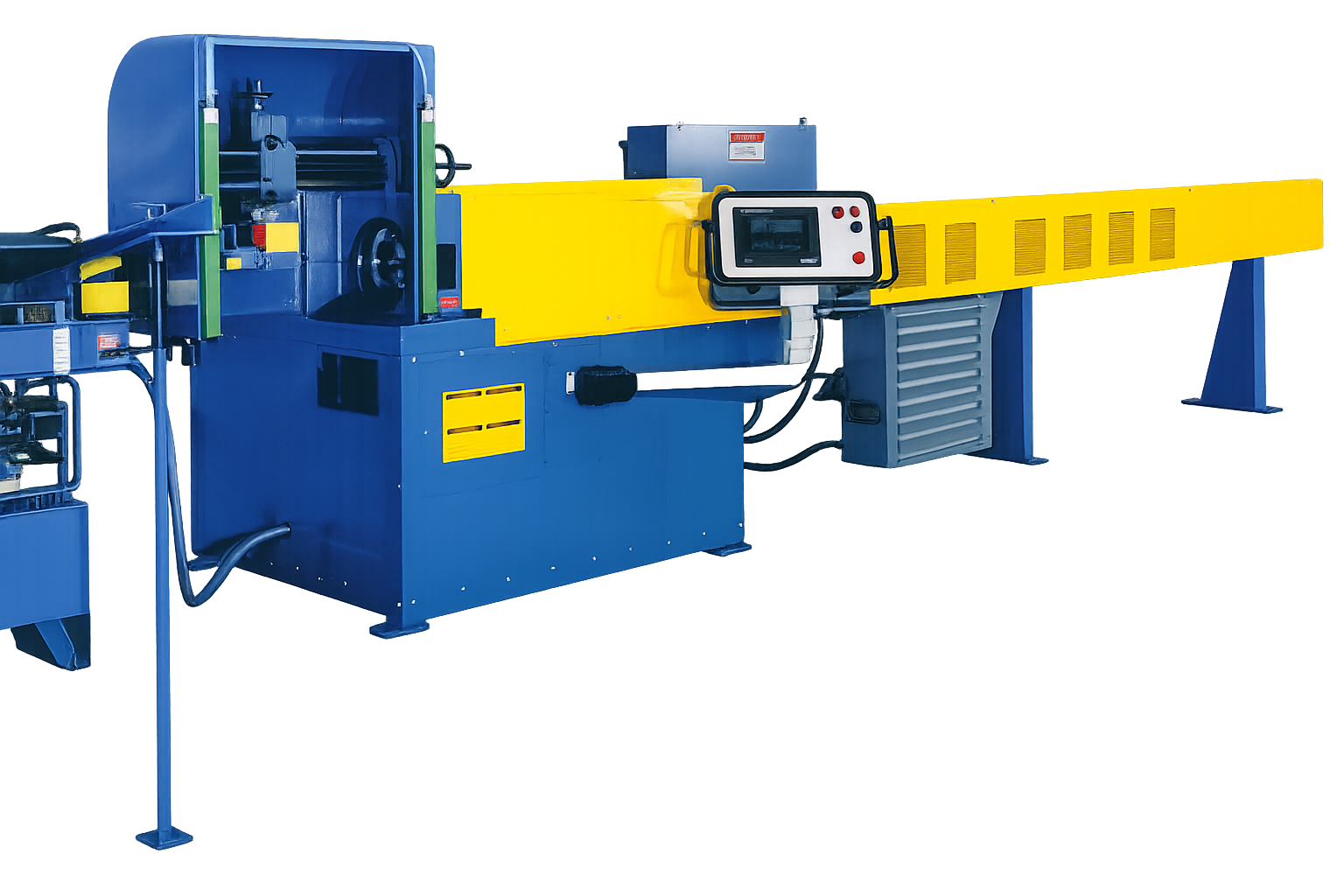

BREHM TUBE CUTTING MACHINES
BREHM
TUBE CUTTING MACHINE
The Brehm® Automatic Tube Cutting Machine is designed for high-speed, burr-free cutting with unparalleled precision and efficiency. Featuring patented Brehm-supported shear technology, these machines eliminate waste between cuts, ensuring clean edges with no distortion.
70+ YEARS
OF EXPERIENCE
BUILT IN THE USA
QUALITY YOU CAN DEPEND ON
ISO 9001:2015
CERTIFIED
GLOBAL INSTALLATIONS
& SUPPORT
advantages
HIGH PRODUCTION
High-speed cut-off ensures fast processing for large volumes, minimizing downtime.
Diameter cuts

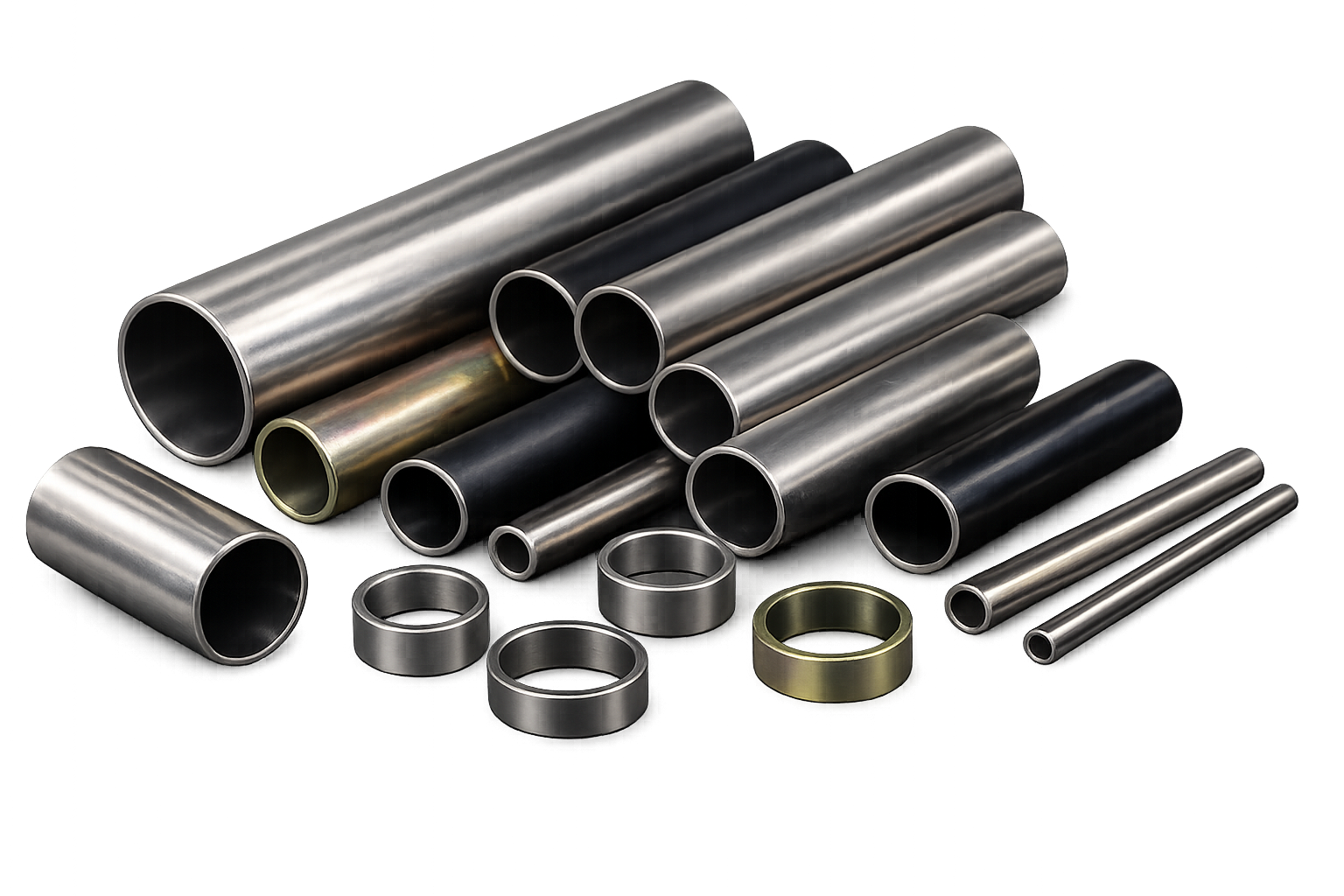

Versatile machine capable of cutting tubes from ½” (12 mm) OD to 6” (152 mm) OD.
ADJUSTABLE CUTTING LENGTHS
Most diameters from 2 ½ times the wall thickness, up to 10”
Long Tool Life
Produce up to 250,000 cuts before sharpening (can be resharpened in-house).
High Tolerances
Achieves precise cuts to thousandths of an inch for consistent accuracy.
Reduced Scrap
No material loss between cut pieces.
Cut-Off Length
From under 1” (25mm) up to 24” (609mm). With optional extension up to 48″ (1219mm).
Fully Automatic
Delivers repeatable precision with fully automated operation.
Burr-free Cuts

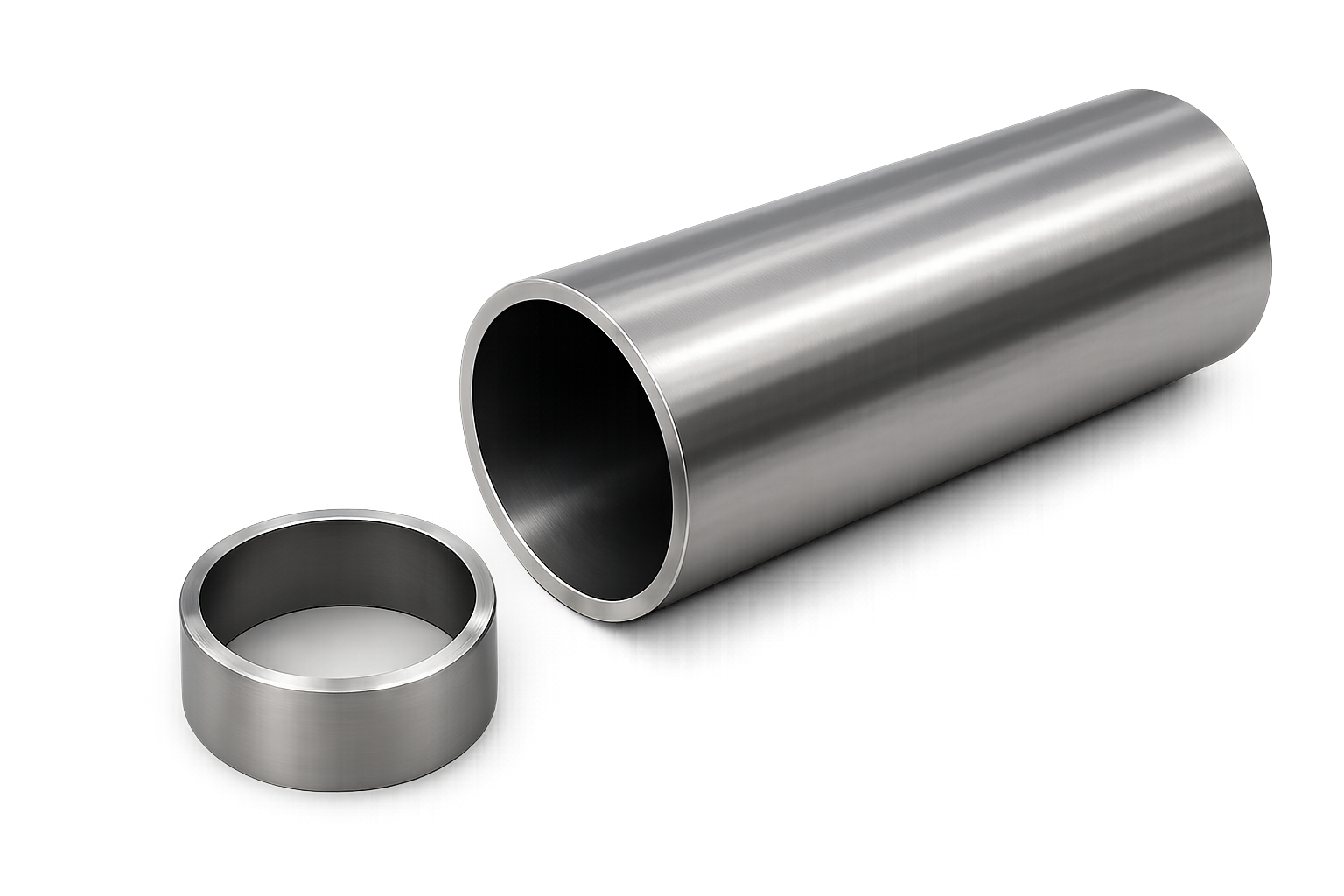

Provides clean, chipless, burr-free cuts with minimal distortion.
IDEAL FOR
Automotive
Fuel Lines, structural tubing, shock absorbers
HVAC
Radiator & heat exchanger components
Manufacturing
Hydraulic cylinder tubes, Pneumatic system tubing, automation system tubing, crimp rings, spacers, precision parts
Medical & Precision Applications
Medical device tubing, stainless sanitary tubing
Aerospace
Hydraulic lines, support tubing
Cutting Speed Performance
Why It Pays for Itself
Ringmaster vs. Other Cutting Methods
Technical Specifications
HOW IT WORKS
®BREHM SUPPORTED SHEAR TECHNOLOGY
Tube is Fully Supported
The tube is securely held by a stationary die and a movable die, supporting both the inside and outside diameters for maximum stability.
Dies Clamp the Tube
Both dies engage the tube, holding it firmly in position to prevent any movement or deformation during cutting.
Controlled Shearing Motion
The movable die advances while carrying the tube forward, shearing it against the stationary die. The movement corresponds to the tube wall thickness, creating a precise, progressive cut.
Continuous Cutting & Part Discharge
The cycle repeats seamlessly, and finished cut pieces are discharged and collected into a bin or bucket for efficient, high-speed production.
See the brehm in action
Additional Tube Cutting Machine Options
RINGMASTER TUBE CUTTING MACHINE
Vulcan Ringmaster is designed for high speed cut-off of tubing ranging from ½” OD up to 4” OD.
ULTIMATE TUBE CUTTING MACHINE
Vulcan Ultimate Tube Cutter is a high speed cut-off single pass, automatic tube cutter.
