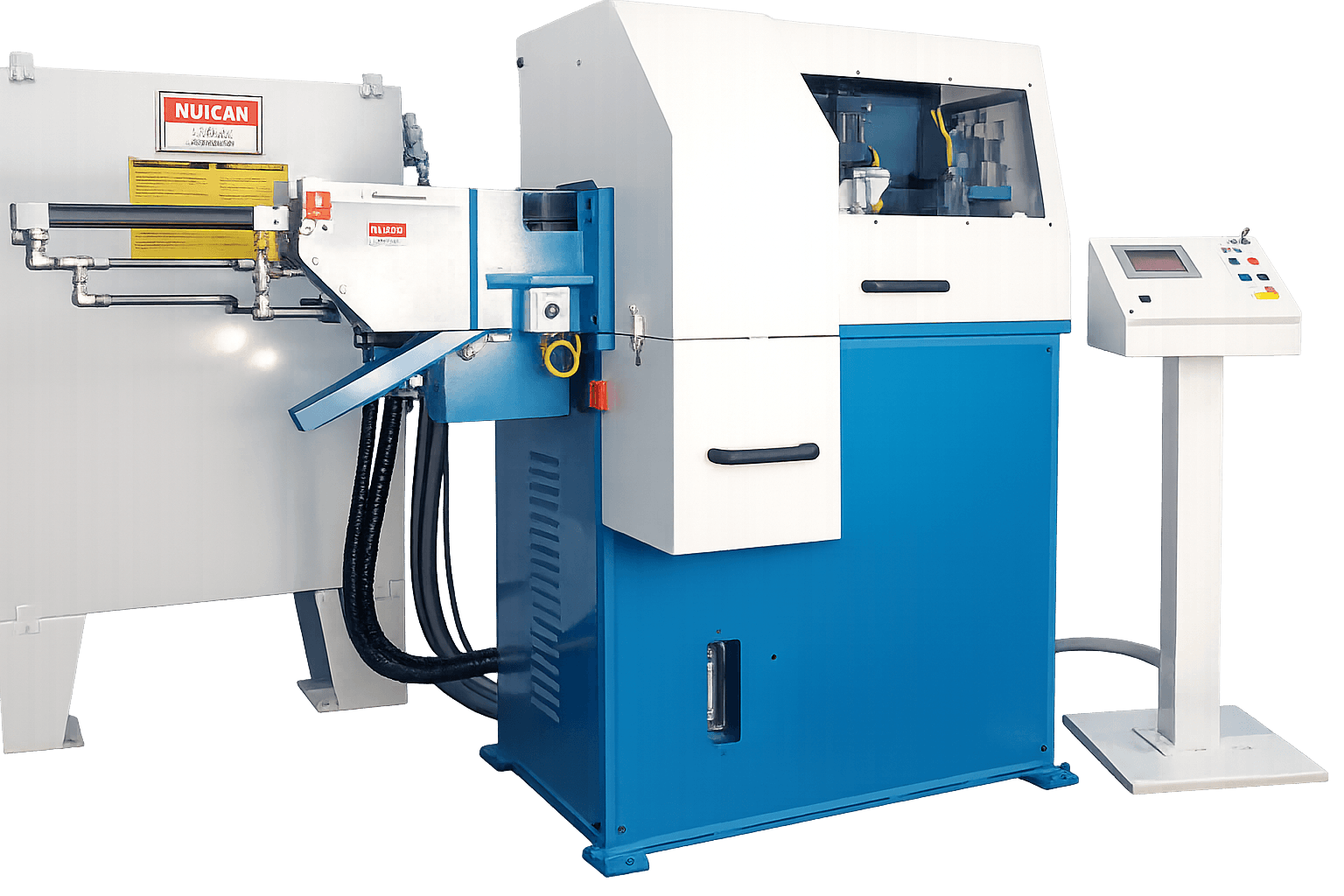

RINGMASTER TUBE CUTTING MACHINES

RINGMASTER

TUBE CUTTING MACHINES

The Ringmaster Tube Cutting Machines are the industry standard for high-speed, burr-free tube cutting, designed to handle heavy wall-to-OD ratios with precision and efficiency. Featuring Brehm® Supported Shear Technology, these machines deliver consistent, high-quality cuts with minimal material loss, making them ideal for industrial applications.

REQUEST A QUOTE

View Ringmaster Flyer



70+ YEARS

OF EXPERIENCE



BUILT IN THE USA

QUALITY YOU CAN DEPEND ON



ISO 9001:2015

CERTIFIED



GLOBAL INSTALLATIONS

& SUPPORT

advantages

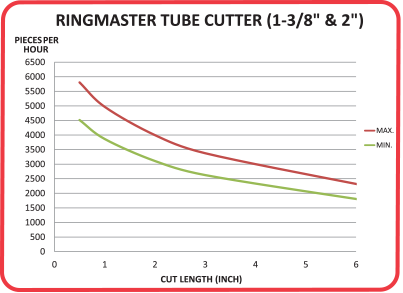

HIGH PRODUCTION

High-speed cut-off ensures fast processing for large volumes, minimizing downtime.

Diameter cuts

Versatile machine capable of cutting tubes from ½” (13mm) OD to 4” (102mm) OD. 6″ (152mm) option available

ADJUSTABLE CUTTING LENGTHS

Most diameters from 2 ½ times the wall thickness, up to 10”

Long Tool Life

Produce up to 250,000 cuts before sharpening (can be resharpened in-house).

High Tolerances

Achieves precise cuts to thousandths of an inch for consistent accuracy.

Reduced Scrap

No material loss between cut pieces.

Cut-Off Length

Standard: 6″ (152mm). Up to 12″ (304mm) optional.

Fully Automatic

Delivers repeatable precision with fully automated operation.

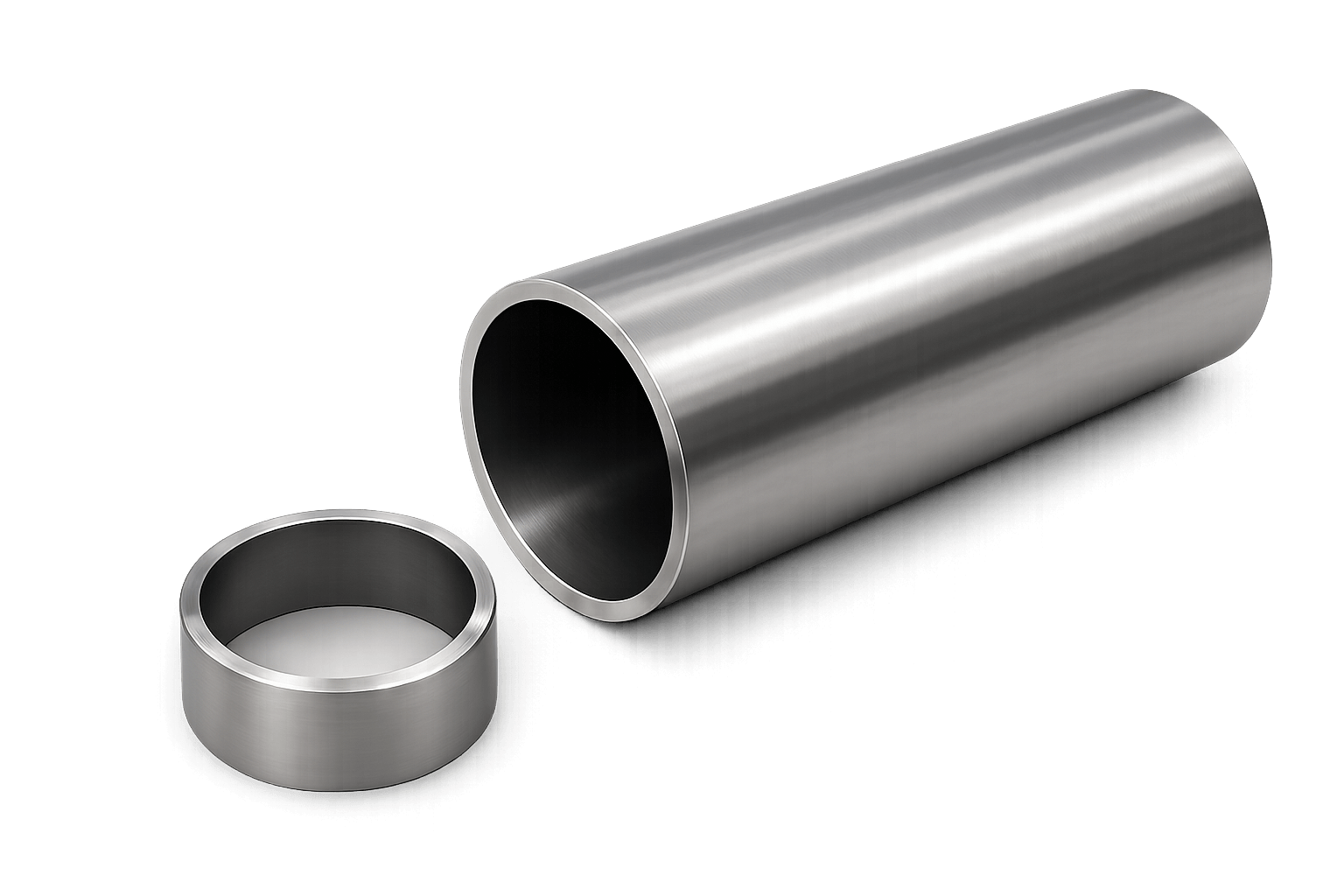

Burr-free Cuts

Provides clean, chipless, burr-free cuts with minimal distortion.

IDEAL FOR

R

Automotive

Fuel Lines, structural tubing, shock absorbers

R

HVAC

Radiator & heat exchanger components

R

Manufacturing

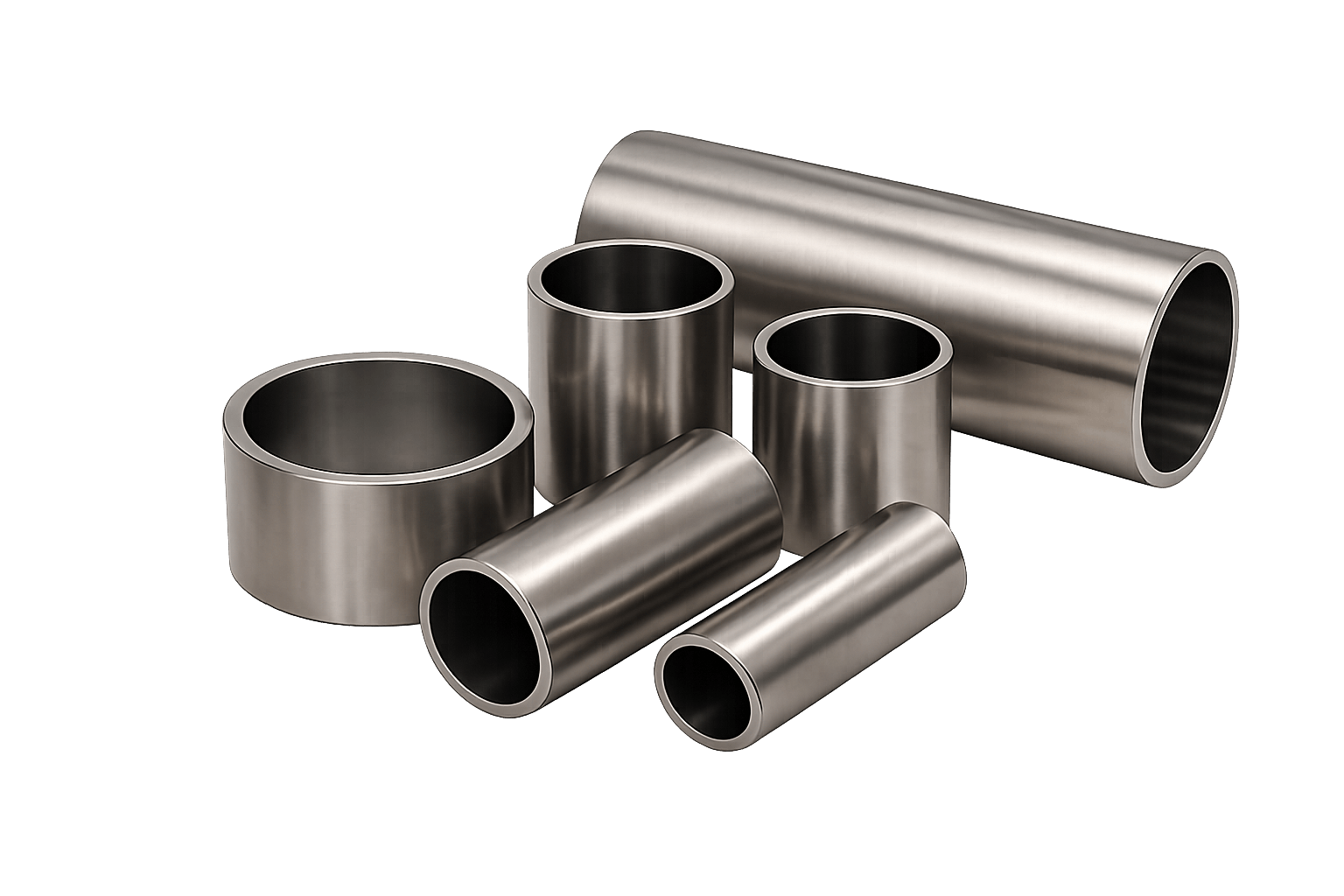

Crimp rings, distance bushings, spacers, precision parts

R

Aerospace

Hydraulic lines, support tubing

R

Appliance

Tubular components, fittings, small precision tubes

Why It Pays for Itself

Factor	Ringmaster Advantage	Result
Material Usage	Chipless cutting (no kerf loss)	Zero scrap between parts
Secondary Operations	Burr-free cuts	No deburring required
Tool Longevity	Up to 250,000 cuts (before sharpening	Lower tooling cost
Labor Requirements	Fully automatic	Reduced labor costs
Production Speed	High-speed operation	Higher throughput

Ringmaster vs. Other Cutting Methods

Feature	Ringmaster	Saw Cutting	Laser Cutting
Burr-Free Cuts	✔ Yes	✖ No	✖ No
Material Loss	✔ None	✖ High	✖ Low
Production Speed	✔ Very High	✖ Medium	✖ Slower
Tool Wear Cost	✔ Low	✖ High	✖ High
High Volume Production	✔ Excellent	✖ Limited	✖ Not Ideal

Technical Specifications

Specification	Details
Tube OD Range	½” (13mm) to 4” (102mm) OD
Wall Thickness Range	Heavy wall-to-OD ratios supported
Cutting Length Range	2.5× wall thickness up to 12” (305mm)
Cutting Method	Brehm® Supported Shear (chipless cutting)
Tolerance	±0.001” (depending on material)
Part Length Consistency	High (servo-controlled precision)

Specification	Details
Hydraulic Pressure	Up to 1500 PSI
Automation	Fully automatic
Tool Life	Up to ~250,000 cuts before sharpening
Scrap	Zero material loss between cuts
Cut Quality	Burr-free, minimal deformation
Available Models	1.375 (35mm), 2” (51mm), 3.5" (89mm) 4” (102mm)

HOW IT WORKS

®BREHM SUPPORTED SHEAR TECHNOLOGY

Tube is Fully Supported

The tube is securely held by a stationary die and a movable die, supporting both the inside and outside diameters for maximum stability.

Dies Clamp the Tube

Both dies engage the tube, holding it firmly in position to prevent any movement or deformation during cutting.

Controlled Shearing Motion

The movable die advances while carrying the tube forward, shearing it against the stationary die. The movement corresponds to the tube wall thickness, creating a precise, progressive cut.
